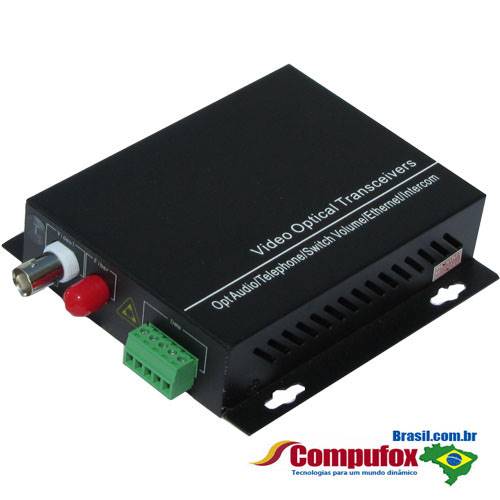

VOC-1 (Video Optical Converter)
1 Channel Digital Video Optical Converter



Nosso Preço: R$567.00

Garantia: Garantia de 90 dias
Disponibilidade: Disponível 10 dias após sua compra
Método de envio: Sedex

Código do Produto: VOC-1

Comprimento de Onda e Distância Máxima

Comp. Onda / Distância Máxima*:
TX1310/RX1550nm - TX1550/RX1310nm, 20km
TX1310/RX1550nm - TX1550/RX1310nm, 40km [Add R$351.00]
TX1490/RX1550nm - TX1550/RX1490nm, 80km [Add R$1,404.00]

Conector de Fibra


SC (Padrão)
ST
FC

Escolha o Tipo de Conversor


Standalone (Padrão)
Card Type

Qtde:
Descrição


1-Channel Digital Video Optical Converter (Transmitter + Receiver)
Video / Audio / Data / Ethernet / Phone / Switch / Alarm

The video optical converter is designed to convert baseband video signals to singlemode optical fiber. The Converter comes with Transmitter and Receiver and must be used in a pair. It can easily extend your video signal up to 80km over single fiber. The modules are directly Compatível with NTSC, PAL, and SECAM camera systems. These units are typically used in applications with a fixed camera, and are available for standalone or rackmount installations. SC, ST and FC optical connectors are standard.

Plug and Play design ensures adjustment-free installation and operation, and optical adjustments are never required. LED indicators are provided to instantly monitor the system operating status. A typical installation utilizes a transmitter unit at the camera end of the link, connected via a single fiber optic cabo, to a receiver unit at the monitoring end of the link.

Applications

  • Intelligent transportation system;
  • High speed way video monitoring and control system;
  • Toll monitoring and control system;
  • Close circuit TV industry monitoring and control;
  • TV program switching channel transmit;
  • High-fidelity video conference system;
  • Security monitoring and control system.

Features

  • 8-Bit Uncompressed Video Transmission;
  • WDM for Highest Quality Video Transmission;
  • No EMI, RFI, Cross Talk, and Ground Loop;
  • No Electrical or Optical Adjustments Required;
  • Completely digital fiber transmit platform;
  • No need to configuration or any adjusting during the installation, user friendly design;
  • Completely digital, broadcast transmission efficiently managed by specific IC;
  • High speed 10/100M Ethernet channel;
  • Flexible configuration on the same platform;
  • LED Indicators for Instant System Monitoring;
  • Self-adapt in PAL, NTSC, SECAM standards;
  • Transmit distance: up to 80KM;
  • Standalone or Rackmount;

Specifications

  • Video Interface: BNC
  • Video Input: 1 volt pk-pk (75 ohms)
  • Input/Output Channels 1
  • Bandwidth: 5 Hz - 8 MHz
  • Bit Resolution: 8-bit
  • Differential Gain: < 2%
  • Differential Phase: < 0.6%
  • Tilt: < 1%
  • S/N Ratio: 67dB (Weighed)
  • Optical Emitter: Laser Diode
  • Number of Fibers: 1
  • Connectors:
    • Optical: SC, ST, FC
    • Video: BNC
  • Power Supply: 5VDC
  • Size: 11.1(L)×10.7(W)×2.8(H) cm
  • Construction: Aluminum
  • Finish: Paint
  • MTBF: > 100,000 hours
  • Operating Temp: -30° C to + 50°C
  • Storage Temp: -40° C to +85°C
  • Relative Humidity: 0% to 95% (non condensing)

Ordering Options

  • This video optical converter can add these modules/interfaces: Data, Audio, Phone, Ethernet, Switch/Alarm. You can order the interfaces separately. We will add the modules you ordered to the converter before shipping.
  • Typical Interface Sets
    • 1 Video
    • 1 Video + 1 Data (reverse)
    • 1 Video + 1 Audio (bi-directional)
  • There are two types of the converter, standalone and card-type. The standalone type can work independently. The card-type need work with 2U 19" Rackmount Chassis.

Application Examples

  • 2 Video

2 Video

  • 1 Video + 1 Audio (bi-directional)

1 Video + 1 Audio (bi-directional)

  • 1 Video + 1 Data (forward)

1 Video + 1 Data (forward)

  • 16-slot Chassis for Video Optical Converter

16-slot Chassis for Video Optical Converter
